Beam & Frame Maintenance Kit

Click on image for larger version - images will open in new window

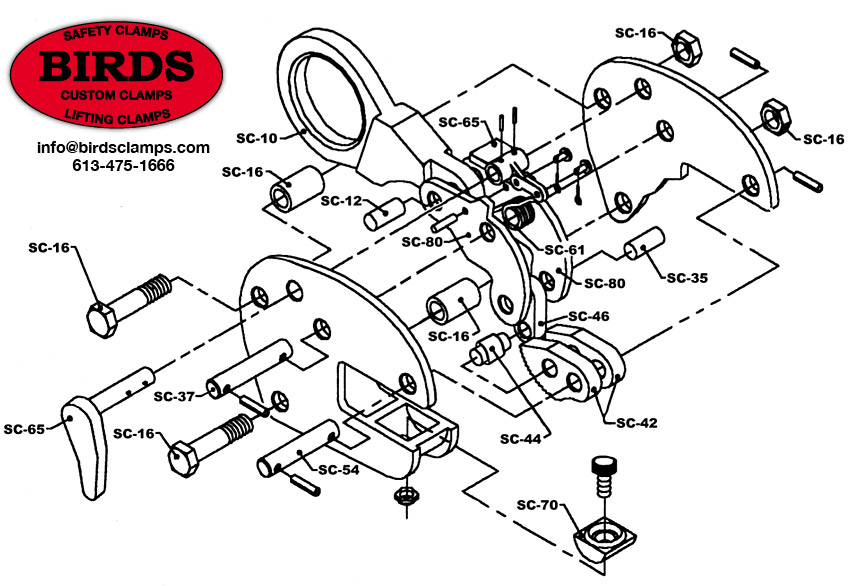

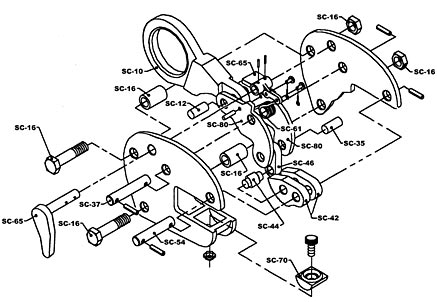

Horizontal Side Beam Lift clamp

Parts can be purchased individually. If you need more than one part, one of our maintenance kits may be more economical.

Part No.Description
SC-10 Lifting Shackle
SC-12 Shackle Pin
SC-16 Spacers
SC-35 Cam Yoke Pin
SC-37 Cam Yoke Pivot Pin
SC-42 Gripping Cams - 2 required
(also available in Stainless Steel - see below)
SC-44 Cam Step Pin
SC-46 Cam Connecting Arm
SC-54 Cam Pivot Pin c/w Roll Pin
SC-61 Spring Assembly (Spring, Yoke, & Cotter Pin)
SC-65 Lock Assembly
SC-70 Rocking Swivel Die c/w Nut & Bolt
(also available in Stainless Steel - see below)
SC-80 Connecting Cam Yoke - 2 Req'd. c/w Separator Pin

PARTS IN STAINLESS STEEL
SC-42-SS Gripping Cams - 2 required
SC-70-SS Rocking Swivel Die c/w Nut & Bolt

PARTS FOR EXTRA HARD LIFTS
SC-42-D2 Gripping Cams - 2 required
SC-70-D2 Rocking Swivel Die c/w Nut & Bolt

See our Downloads page for more documents
