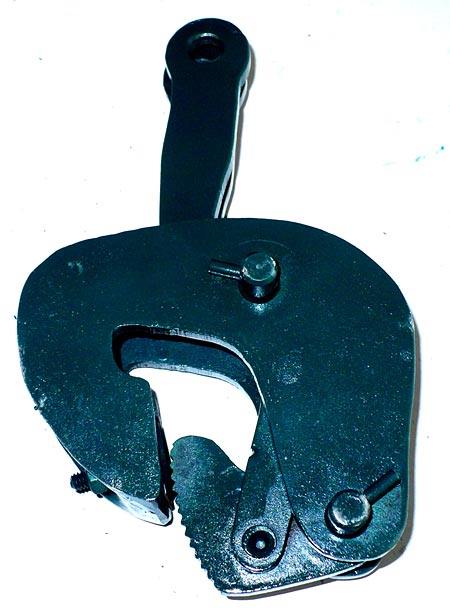

Barrel Clamp

Our Barrel Clamp is a compact lifting clamp ideal for lifting barrels of various shapes and sizes. A spring loaded bottom cam locks to the barrel automatically. The open top shackle comes ready to accept a chain link or clevis. Special shackles are also available for custom applications.

For use individually or in pairs.

Product # BLC

FEATURES:

  • Tested for 2:1 safety factor
  • Spring tensioning on teeth
  • No lock open or closed
  • Convenient way to lift barrels
  • Just push on and push to lift off
  • Can lift bins and other containers that it will fit over
Click on image for larger version - images will open in new window
Horizontal Side Beam Lift clamp

1 metric tonne = 2200 lbs / 1 kg = 2.2 lbs / 10 mm = .3937 inches

ModelClamp
Capacity
Jaw
(mm)
WeightLock
BLC .5 tonne 0-15 5 kg None
