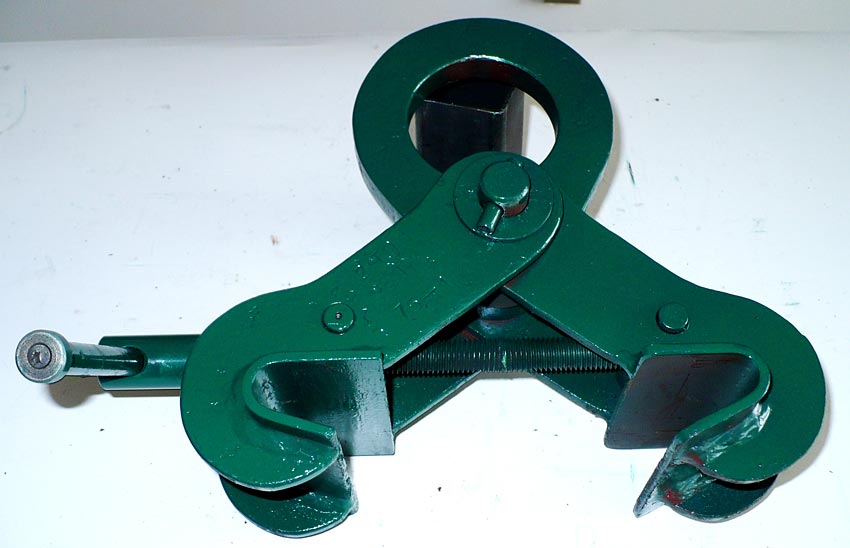

Beam & Tackle Clamp

The Beam and Tackle Clamp is used for steel beams as a lifting clamp, a beam and tackle clamp, and as a pulling clamp. It is constructed with a hoisting eye and a screw spindle for adjusting to the width of the flange of the beam (see video).

Product # BTK

FEATURES:

  • Tested for 2:1 safety factor
  • Used to lift I-beams & Tee steels
  • Used as a tackle point on overhead or other positions to hook a hoist or comealong for pulling, etc.
  • Can be used in unique positions
  • Can also lift girders
  • A good multi-purpose lifting device
Click on image for larger version - images will open in new window
Horizontal Side Beam Lift clamp

1 metric tonne = 2200 lbs / 1 kg = 2.2 lbs / 10 mm = .3937 inches

ModelClamp
Capacity
Jaw
(mm)
Weight
BTK-2 2 tonnes 75-191 2 kg
BTK-3 3 tonnes 75-191 3 kg
BTK-4 4 tonnes 149-254 5 kg
BTK-5 5 tonnes 121-360 10 kg
