Horizontal Plate Lifting Clamp

Our Horizontal Plate Lifting Clamps are designed for horizontal lifting of steel plates and must be used in pairs only. The gripping cam clamps onto the plate and prevents slipping. It becomes self-opening when the tension is released on the clamp. All parts are made from the finest grade steel available.

Product # HL

FEATURES:

  • Prooftested for 2:1 safety factor
  • Available in 0.5 tonne, 1 tonne, 1.5 tonnes, 3 tonnes, 6 tonnes, and 8 tonnes
  • Other tonnages available by request
  • Sold in pairs - to lift 2 tonnes total, you need two 2 tonne clamps

Download Horizontal Lifting safety info

Click on image for larger version - images will open in new window

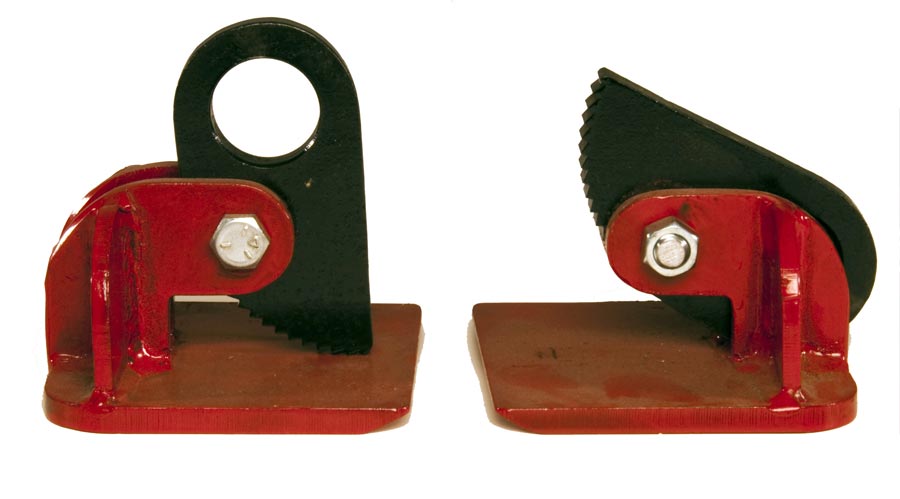

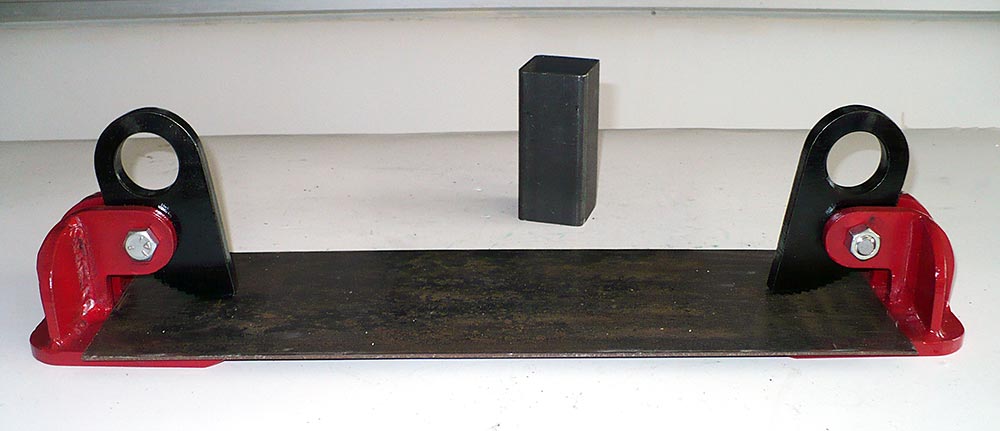

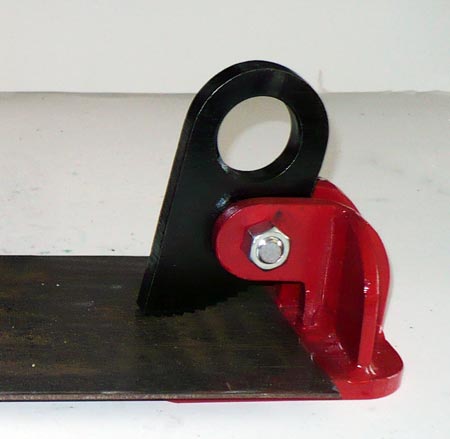

Horizontal Plate Lifting Clamp Horizontal Plate Lifting Clamp - Maximum lifting angle - side viewHorizontal Plate Lifting Clamp - Maximum lifting angle - top view Horizontal Plate Lifting ClampHorizontal Side Beam Lift clamp

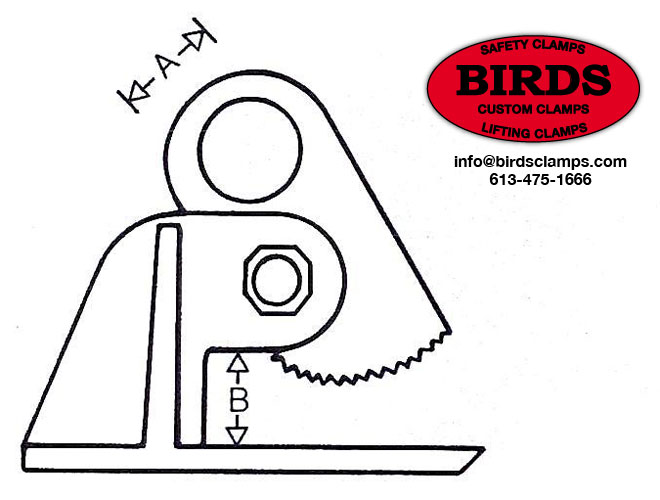

Chart measurements below relate to letters on diagram.
Model # is based on tonnage.
1 metric tonne = 2200 lbs / 1 kg = 2.2 lbs / 10 mm = .3937 inches

ModelClamp CapacityA
(mm)
B
(mm)
Weight
HL-H .5 tonne 25 25 4.5 kg
HL-1 1 tonne 31 51 11.8 kg
HL-1H 1.5 tonnes 31 51 13.6 kg
HL-3 3 tonnes 31 51 15.9 kg
HL-6 6 tonnes 31 51 18.2 kg
HL-8 8 tonnes 47 76 42.8 kg
